90 Degree Socket Weld Elbow Outlet Fittings Supplier

ASME B 16.11 Socket Weld 90 Degree Elbow Outlet Fittings, Forged Socket Weld 90 Degree Elbow Outlet, Socket Weld Threaded 90 Degree Elbow Outlet Manufacturer, Supplier & Exporter in India

We Numax Steels are one of the most prominent and major Manufacturer, Supplier & Explorer of Forged Socket Weld Fittings 90° Elbow Outlet which helps change the direction of the flow at a 90 Degree angle. We supply high quality ASME B16.11 / BS3799 90° Elbow Outlet at the best prices in the market.

ASME B 16.11 Forged Socket Weld Fittings 90° Elbow Outlets is used only in conjunction with ASME Pipe. Socket Weld Fittings 90° Elbow Outlet fittings are designed for wide use in different industries like oil refineries, chemical processing, and many other industries. All our products are made under the supervision and guidance of highly skilled staff that monitor every process, from procurement of raw materials to packing the finished goods. Contact us for the best quality products at affordable prices.

ASTM A182 Stainless Steel Socket Weld 90 Degree Elbow Outlet, Alloy Steel Socket Weld 90 Degree Elbow Outlet Fittings, Carbon Steel Socket Weld 90 Degree Elbow Outlet, Nickel Alloy Socket Weld 90 Degree Elbow Outlet Dealer & Wholesaler

90 Degree Socket Weld Elbow Outlet Fittings
90 Deg Socket Weld Elbow Outlet Fittings
Socket Weld 90 Degree Elbow Outlet Fittings

Socket Weld 90 Degree Elbow Outlet Fittings Specification

Dimensions ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size 1/8" NB to 4" NB IN
Class 3000 LBS, 6000 LBS, 9000 LBS
Type Threading Outlets, Lateral Outlets, Welding Outlets, Sockt weld Outlets, Nipple Outlets, Sweep Outlets.
Thickness SCH 5S,SCH 10S, SCH 40S, SCH 80S, SCH 120S

90 Degree Socket Weld Elbow Outlet Fittings Material & Grades

Stainless Steel 90 Degree Elbow Outlet Socket Weld Fittings ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A182 TP304, TP304L, TP316, TP316L
Nickel Alloy 90 Degree Elbow Outlet Socket Weld Fittings ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Monel Alloy 90 Degree Elbow Outlet Socket Weld Fittings ASTM / ASME B 564, UNS N04400 (MONEL 400 ), UNS N05500 (MONEL K500 )
Alloy 20 90 Degree Elbow Outlet Socket Weld Fittings ASTM / ASME SB 336, ASTM / ASME SB 564 UNS 8020 ( ALLOY 20 / 20 CB 3 )
Duplex & Super Duplex Steel 90 Degree Elbow Outlet Socket Weld Fittings ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950
Copper Alloy Steel 90 Degree Elbow Outlet Socket Weld Fittings ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Types of 90 Degree Elbow Outlet Socket Weld Fittings

Forged Socket weld 90 Degree Elbow Outlet Forged Socket weld Long Radius 90 Degree Elbow Outlet
150 lb. Socket Weld Fittings 90 Degree Elbow Outlet Socket weld 90 Degree Elbow Outlet
ASME B16.11 Socket weld 90 Degree Elbow Outlet 90 Degree Elbow Outlet 3000LB Socket Weld
Stainless Steel 90 Degree Elbow Outlet SS Forged 90 Degree Elbow Outlets
ANSI B16.11 Forged 90 Degree Elbow Outlet BS 3799 Forged 90 Degree Elbow Outlet
Forged Socket weld 90 Degree Elbow Outlet Socket weld 90 Degree Elbow Outlet
Carbon Steel Socket weld 90 Degree Elbow Outlet High Quality Socket weld 90 Degree Elbow Outlet
ASTM A182 Socket weld Stainless Steel 90 Degree Elbow Outlets Duplex Steel Socket weld 90 Degree Elbow Outlet
Super Duplex Steel 90 Degree Elbow Outlet Copper Nickel Socket weld 90 Degree Elbow
High Nickel Alloy Forged Socket weld 90 Degree Elbow Outlet Hastelloy Socket weld 90 Degree Elbow Outlet
Titanium Socket weld 90 Degree Elbow Outlet Inconel Socket weld 90 Degree Elbow Outle
Stainless Steel 304 90 Degree Elbow Outlet Socket Weld Fittings SS 316 Socket Weld 90 Degree Elbow Outlet Fittings
Nickel Alloy 200 Socket Weld 90 Degree Elbow Outlet Fittings 201 Nickel Alloy 90 Degree Socket Weld Elbow Outlet Fittings

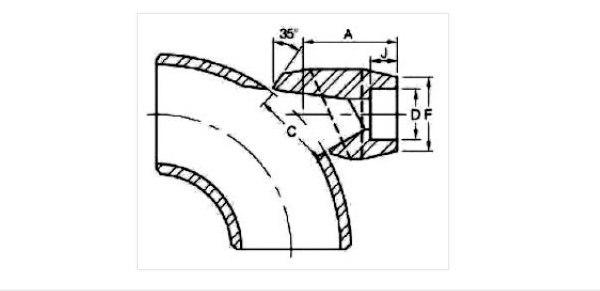

ASME B 16.11 90 Degree Elbow Outlet Socket Weld Fittings Dimensions

90 Degree Elbow Outlet Socket Weld Fittings Dimensions
3000LB
Outlet Pipe
ON Inch A C F D J
1/4" 40.5 35.2 22.0 14 .35 10.0
10 3/8' 40.5 35.2 25.9 17.80 10.0
15 112 40.5 35.2 31.4 21.95 11.1
20 314 47.6 43.6 37.1 27.30 12.7
25 1" 55.6 54.0 45.5 34.05 13.5
32 1-1/4" 60.3 67.5 57.0 42.80 15.1
40 1-1/2" 66.7 76.2 64.0 48.90 15.9
50 2" 81.0 104.8 76.0 61.35 17.5
65 2-1/2" 82.6 106.4 92.0 74.15 23.8
80 3" 96.8 125.4 109.2 90.10 28.6
100 4" 114.3 163.5 140.0 115.7529.4
6000LB
Outlet Pipe
ON Inch A C F D J
8 1/4" 40.5 34.9 26.0 14 .35 10.0
10 3/8" 40.5 34.9 33.0 17.80 10.0
15 1/2" 47.6 34.9 38.0 21.95 10.0
20 3/4" 55.6 43.6 44.0 27.30 14.3
25 1" 60.3 54.0 57.0 34.05 15.9
32 1-1/4" 66.7 67.5 64.0 42.80 20.6
40 1-1/2" 85.7 76.2 76.0 48.90 20.6
