Reducing Union

Reducing Union Tube Fittings Supplier, Reducing Union Compression Tube Fittings Exporter, Reducing Union Instrumentation Pipe Fittings Stockists in Mumbai, India

Stainless Steel Reducing Union Tube Fittings, Alloy Steel Reducing Union Tube Fittings, Carbon Steel Reducing Union Tube Fittings, Nickel Alloy Reducing Union Tube Fittings Trader

Reducing Union Fitting is generally used to connect ends of 2 tubes of different Outer Diameter. The bore of the fitting ordinarily matches the Inner Diameter of the smaller tube. Numax Steels manufacture both single ferrule and double ferrule fittings that are manufactured in Stainless steel and Alloy steel grades.

There are many brands available in the market like Swagelok, KSLOK, BILOK, TYLOK, and Parker ALOK, among them, Numax steel is known as one of the best trader and manufacturer of Reducing Union Ferrule Fittings that are made available in a variety of popular Stainless Steel grades include SS 304 & SS 316. Alloy Steel, Carbon Steel, as well as Nickel Alloy grades including Monel, Inconel, Hastelloy, Duplex Steel, Aluminum, 254 SMO etc. Reducing Union Tube fittings are designed to feature excellent strength to high-pressure applications. Contact us today to avail a free quote!

Monel Reducing Union Tube Fittings, Hastelloy Reducing Union Tube Fittings, Inconel Reducing Union Tube Fittings, Aluminum Reducing Union Tube Fittings Dealer in India

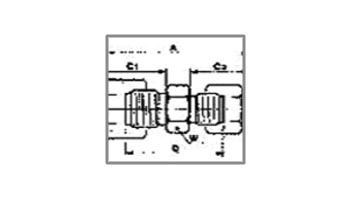

Reducing Union

Imperial Tubing
Tube O.D		A		C1		C2		D						W inch			Min bore
1 inch	2 inch	mm	inch	mm	inch	mm	inch				mm		inch				mm
1/8	1/16	1.20	30.5	0.60	15.2	0.43	10.9	0.81				20.6		7/16		0.05	1.3
3/16	1/16	1.25	31.8	0.63	16.0	0.43	10.9	0.86				21.8		7/16		0.05	1.3
3/16	1/8	1.42	36.1	0.63	16.0	0.60	15.2	0.92				23.4		7/16		0.09	2.3
1/4	1/16	1.35	34.3	0.70	17.8	0.43	10.9	0.91				23.1		1/2		0.05	1.3
1/4	1/8	1.52	38.6	0.70	17.8	0.60	15.2	0.97				24.6		1/2		0.09	2.3
1/4	3/16	1.54	39.1	0.70	17.8	0.63	16.0	1.00				25.4		1/2		0.13	3.3
5/16	1/4	1.67	42.4	0.73	18.6	0.70	17.8	1.08				27.4		9/16		0.19	4.8
3/8	1/16	1.44	36.6	0.76	19.3	0.43	10.9	1.00				25.4		5/8		0.05	1.3
3/8	1/8	1.60	40.6	0.76	19.3	0.60	15.2	1.06				26.9		5/8		0.09	2.3
3/8	1/4	1.72	43.7	0.76	19.3	0.70	17.8	1.13				28.7		5/8		0.19	4.8
3/8	5/16	1.75	44.5	0.76	19.3	0.73	18.6	1.16				29.5		5/8		0.25	6.4
1/2	1/8	1.72	43.7	0.86	21.8	0.60	15.2	1.09				27.7		13/16		0.09	2.3
12/	1/4	1.84	46.7	0.86	21.8	0.70	17.8	1.16				29.5		13/16		0.19	4.8
1/2	3/8	1.90	48.3	0.86	21.8	0.76	19.3	1.22				31.0		13/16		0.28	7.1
5/8	3/8	1.93	49.0	0.86	21.8	0.76	19.3	1.25				31.8		15/16		0.28	7.1
5/8	1/2	2.02	51.3	0.86	21.8	0.86	21.8	1.25				31.8		15/16		0.41	10.4
3/4	1/2	2.08	52.8	0.86	21.8	0.86	21.8	1.31				33.3		1.1/16		0.41	10.4
3/4	5/8	2.08	52.8	0.86	21.8	0.86	21.8	1.31				33.3		1.1/16		0.50	12.7
1	3/4	2.35	59.7	1.04	26.4	0.86	21.8	1.50				38.1		1.3/8		0.63	16.0
Metric tubing
Tube O.D 1 mm 2 mm		A mm		C1 mm			D mm		W mm				Min bore mm
6	3	38.7		17.7			15.3		1/2				2.4
8	6	42.4		18.6			27.4		9/16				4.8
10	6	44.5		19.5			29.4		11/16				4.8
10	8	44.5		19.5			29.4		11/16				6.4
12	6	47		22			29.4		13/16				4.8
12	8	47.8		22			30.2		13/16				6.4
12	10	48.7		22			31		13/16				7.9
16	12	52		22			31.8		15/16				9.5
25	18	60.5		26.5			38.1		1.3/8				15.1
25	20	62.3		26.5			39.9		1.3/8				15.9

Price List of Reducing Union

Numax Steels is one of the most competitive suppliers of pipes and tubes from India. Our prices for Reducing Union are very competitive. Please click on the enquiry button or click here to request the updated price list and ready stock information along with your requirement. Numax Steels maintains a stock of all standard items and can export them at the best price for Reducing Union.
